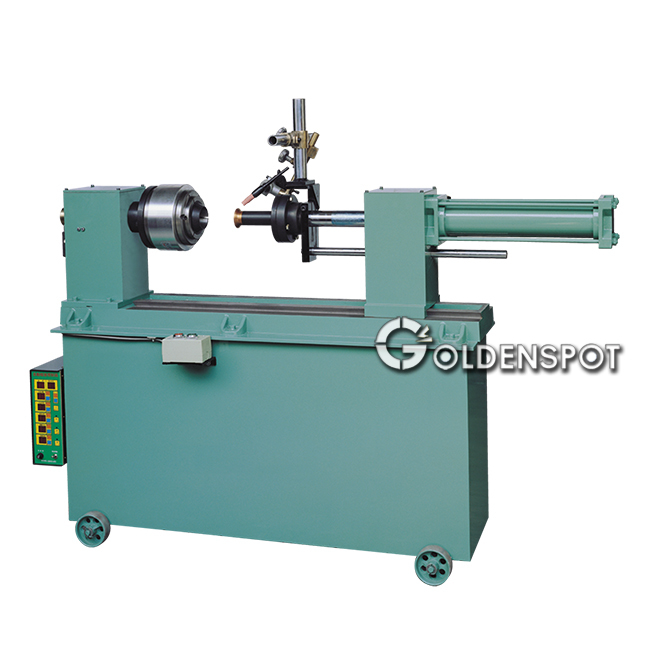

Horizontal Table Rotary Stand (MIG/TIG) Model：SR-350
Features
1.Stable rotating speed & multi-function with micro-computer weld controller.
2.Rotation Speed Adjustable. Operation modes: Cycle, manual, timing.
3.Better performance operates with MIG or TIG welding torch.
4.Fast & handy operate to regular operator.
5.Adjustable gun position with Table Rotating. Multi-gun applicable.
Applications
Metal working piece which require for circular welding. i.e. Air/water tanks
Inquiry
| Model | Voltage | Applicable Thickness | Speed | Permissible Duty | Depth Of Throat | Working Length | Working Diameter | Slide Base |
|---|---|---|---|---|---|---|---|---|
| NO. | V | mm | RPM | % | mm | mm | mm | - |
| SR-350 | 220 | 0.3~6 | 3~15 | 80 | 600 | 150~600 | Ø30~300 | x |
| SR-350T | 220 | 0.3~6 | 3~15 | 80 | 600 | 150~600 | Ø30~300 | v |
