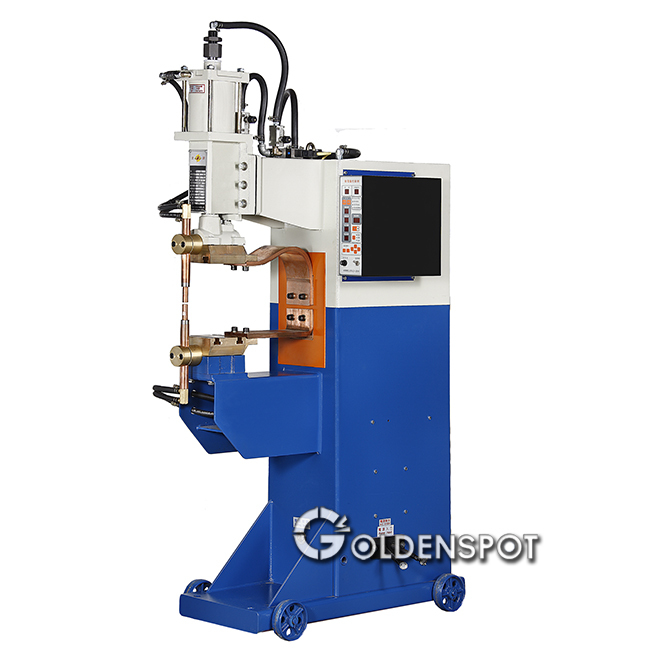

Pneumatic Spot Welding Machine Model：SA-600
1.Stroke variable pneumatic cylinder. Built-in lubrication-free bearing suits high speed & long operation period. Lower air consumption, faster welding reaction.
2.Precision digital IC control circuit No connection joints, simplified programming operations with better welding results.
3.With our own welding control, it is easy to assemble with automatic welding lines from capability of applying multiple welding units (15 units max) according to different requirements.
4.Toughest machine body with water circulation cooling system for high speed continual operation.
5.SCR circuit switch with current charge controller, perform best durability, reliability & welding quality.
Inquiry
| Single- Point | Model | Rated Capacity | Voltage | Max. Pressure | Max. Short Circuit Current | Depth Of Throat | Weld Thickness |
|---|---|---|---|---|---|---|---|
| NO. | KVA | V | KG | A | mm | mm | |
| SA-400 | 40 | 220/380 | 500 | 15,000 | 400 | 1.8 x 1.8 | |
| Multi-Point | SA-600 | 60 | 220/380 | 800 | 24,000 | 400 | 3 x 3 |
| SA-800 | 80 | 220/380 | 800 | 28,000 | 400 | 3.5 x 3.5 | |
| SA-1000 | 100 | 220/380 | 800 | 34,000 | 400 | 3.5 x 4 | |
| SA-1200 | 120 | 220/380 | 1,000 | 38,000 | 400 | 4 x 4 | |
| SA-1500 | 150 | 220/380 | 1,000 | 40,000 | 350 | 4 x 4.5 | |
| SA-2000 | 200 | 220/380 | 1,000 | 48,000 | 350 | 4 x 5 |
