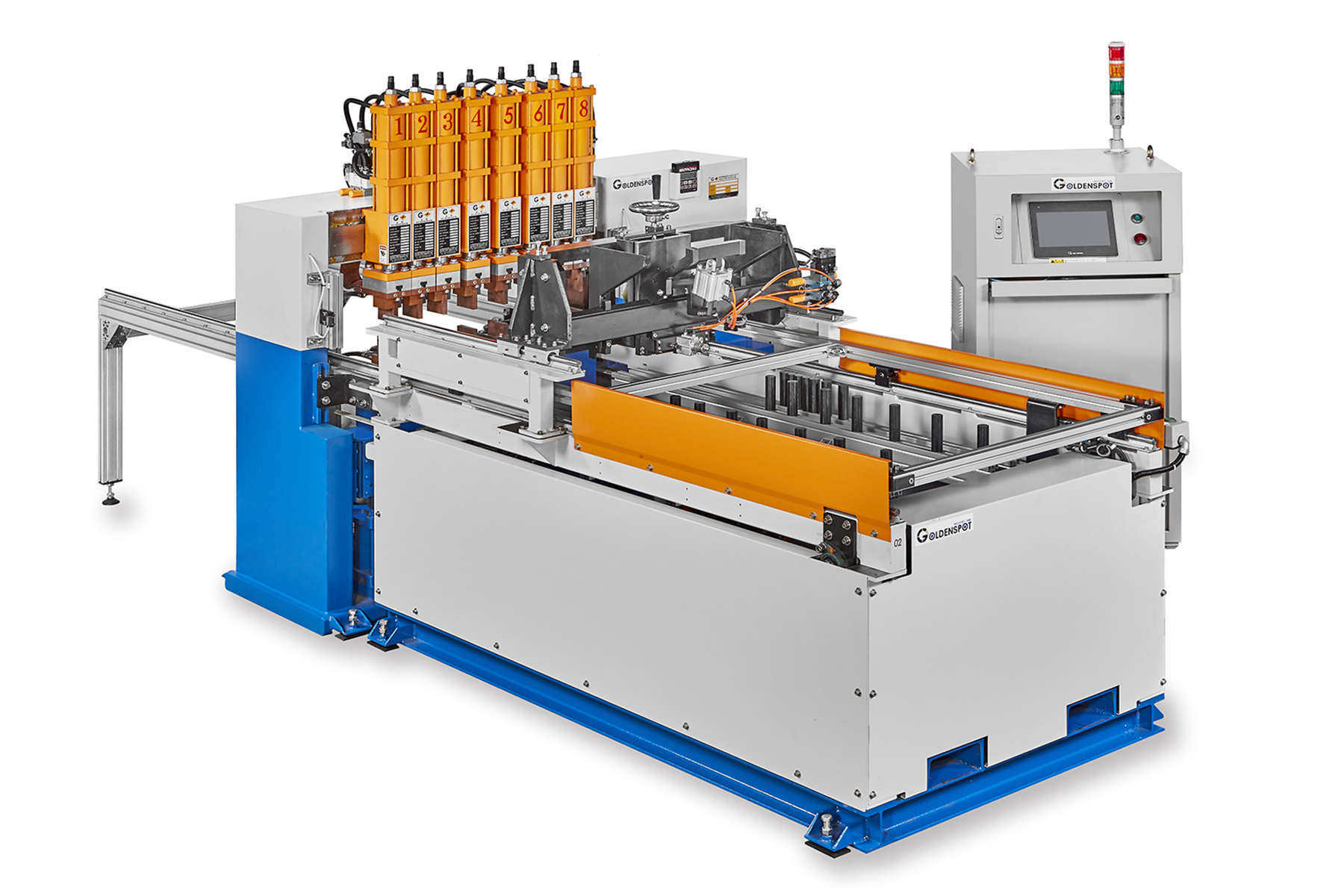

Multi-Jig Mesh Welding Machine Model：SA-1500DL-1
【Auto Cross Wire Feeder】
- Standard Accessory：Twin feeder with wire jigs.
- Optional for loading system: 1～3 units.
- Feeding speed: 3 pcs/sec.
【Finger-touch Screen (HMI) Operation】
- Graphic Design.
- User-Friendly.
【Double Welder】
- Independent Double Welding System.
- (Each with 5 pcs welding cylinders.)
- Dual Lower Arch Structure.
- Independent control, driven by servo motor.
- Either one side or two sides operation with different workpiece.
Inquiry
【Increase production / Reduce Labor costs】
- Vertical way action (Multi-point at once).
- Reduce wire loading time.
- Suitable for mesh with large number of cross wires but few of line wires.
【Multi-function Welding method】

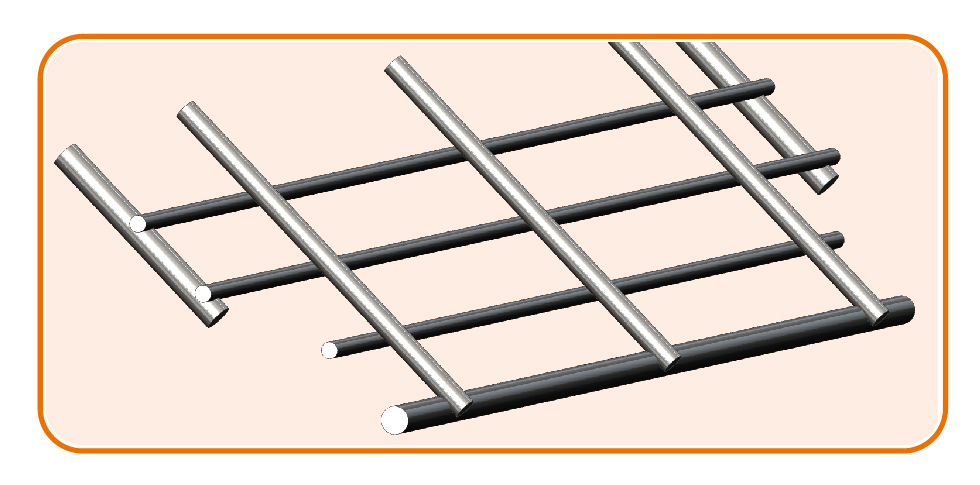

- Applicable to Double Wire Mesh with different wire thickness and length of mesh.
- Mesh with Accessory welding.
- Mesh Releasing Device- Mesh released from the jig, mesh unloaded manually.
【Specification】
- Mesh Max. specs：24”X48”(610mmX1219mm) X2pcs.
- Other sizes are available.
【Application】
- Double Wire Mesh, different wire thickness, various length, wire frame.
- EX: Wire Shelves, Wire Cages.
